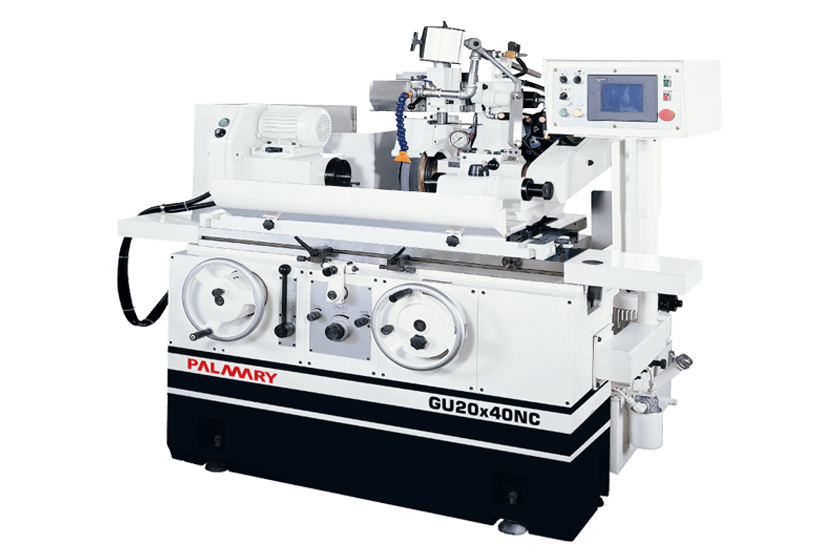

GU20x40NC

Specificații tehnice

Swivel over table

210 mm

Distance between centers

400 mm

Max. external grinding diameter

200 mm

Sarcină maximă

60 kgs

Disc abraziv

355 x 38 x 127 mm

Linear velocity

33 M/s

X axis manual distance

135 mm

X axis auto. rapid advance

25 m/min

X axis max. stroke

185 mm

Z axis traverse speed

1.5 m/min

Z axis max. stroke

480 mm

Table swivel angle

-3deg, +12deg

Work spindle head swivel angle

-30deg - +90deg

Center taper

M.T. No. 3

Turație arbore

10-300 r.p.m.

Sarcină maximă (Max. load of spindle)

15 kgs (max. length: 100 mm)

Tailstock stroke

20 mm

Wheel spindle motor

3.7 kW (4P)

Work spindle motor (AC Servo)

0.37 kW (4P)

Total voltage

7 KVA

Wheel spindle lubricant tank

7 L

Hydraulic tank

46 L

Capacitate rezervor lichid de răcire

110 L

Greutate utilaj

2000 kgs
