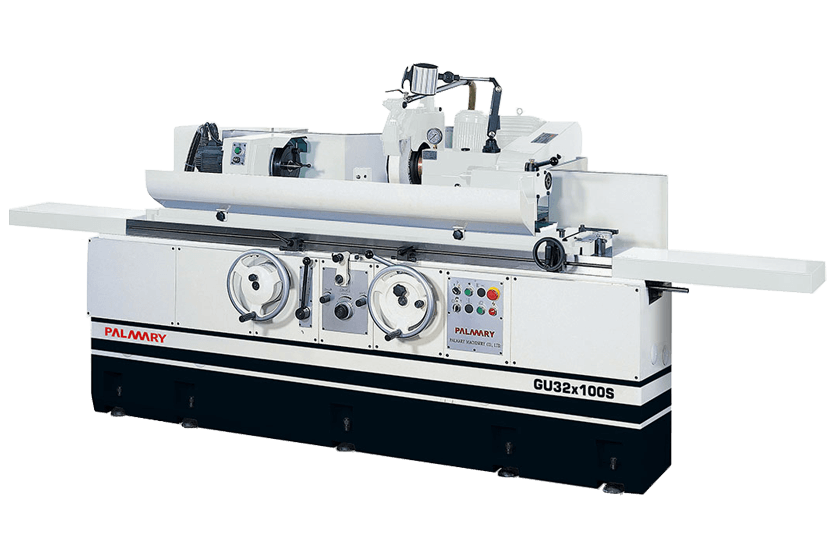

GU32x100S

Specificații tehnice

Swivel over table

320 mm

Distance between centers

1000 mm

Max. external grinding diameter

300 mm

Sarcină maximă

150 kgs

Disc abraziv

405 x 50 x 127 mm

Linear velocity

33 M/s

X axis manual distance

160 mm

X axis auto. rapid advance

40 m/min

X axis max. stroke

250 mm

X axis min. setting unit

0.001 mm

Z axis traverse speed

1.5 m/min

Z axis max. stroke

1110 mm

Table swivel angle

-3deg, +8deg

Work spindle head swivel angle

-30deg - +90deg

Center taper

M.T. No. 4

Turație arbore

10-300 r.p.m.

Sarcină maximă (Max. load of spindle)

35 kgs (max. length: 150 mm)

Wheel spindle motor

5.5 kW (4P)

Workhead spindle motor (AC Servo)

1.3 kW (4P)

Total voltage

10 KVA

Wheel spindle lubricant tank

9 L

Hydraulic tank

63 L

Capacitate rezervor lichid de răcire

110 L

Greutate utilaj

3200 kgs
