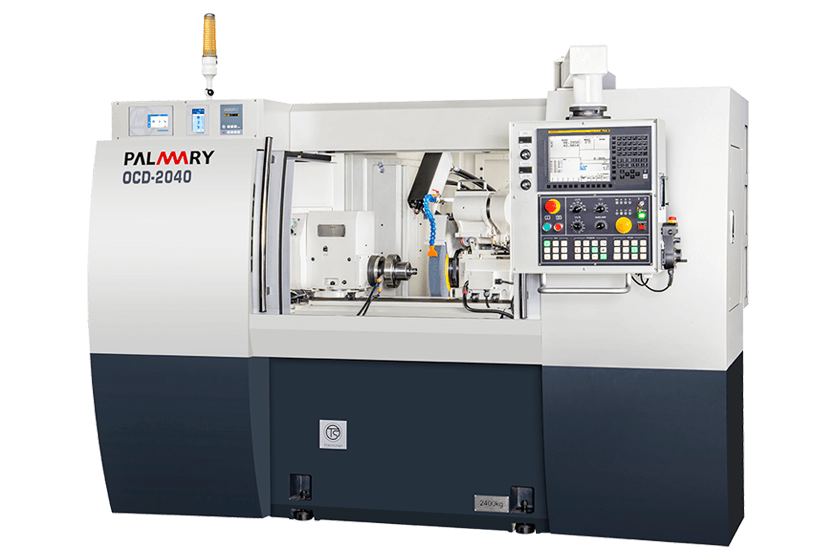

OCD-2040

Specificații tehnice

Swivel over table

220 mm

Distance between centers

400 mm

Max. external grinding diameter

200 mm

Sarcină maximă

60 kgs

Disc abraziv

355 x 38-50 x 127 mm

Linear velocity

33 M/s

Wheelhead X axis rapid speed

10 m/min

Wheelhead X axis max. stroke

170 mm

Wheelhead X axis min. setting unit

0.0001 mm

Table Z axis rapid speed

10 m/min

Table Z axis max. stroke

560 mm

Table Z axis min. setting unit

0.001 mm (0.0001 mm)

Table swivel angle

-3deg, +10deg

Work spindle head swivel angle

-30deg - +90deg

Center taper

M.T. No. 3

Turație arbore

10-300 r.p.m.

Sarcină maximă (Max. load of spindle)

15 kgs (max. length: 100 mm)

Tailstock taper center

M.T. No. 3

Tailstock stroke

25 mm

Tailstock fine adjustment range

+/-0.03 mm

Comandă numerică

FANUC

Wheel spindle motor

3.7 kW

Work spindle motor

0.37 kW

Wheelhead spindle motor (AC Servo)

0.75 kW

Table feed motor (AC Servo)

1.2 kW

Hydraulic pump motor

0.75 kW

Wheel spindle lubricant motor

0.37 kW

Coolant pump motor

0.18 kW

Internal grinding wheel spindle (opt.)

0.37 kW

Wheel spindle lubricant tank

28 L

Lubrication fluid tank

22 L

Hydraulic oil tank (opt. accessory)

22 L

Ballscrew lubrication tank

0.7 L

Capacitate rezervor lichid de răcire

120 L

Greutate utilaj

2350 kgs
