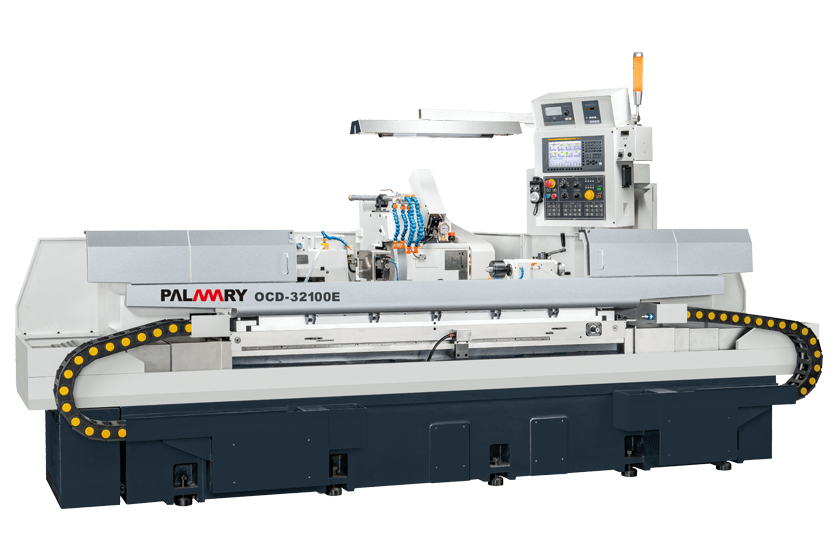

OCD-32100E

Specificații tehnice

Swivel over table

320 mm

Distance between centers

1000 mm

Max. external grinding diameter

300 mm

Sarcină maximă

500 kgs

Disc abraziv

510 x 50 x 203.2 mm

Linear velocity

33 M/s

Wheelhead X axis auto. rapid advance

6 m/min

Wheelhead X axis max. stroke

400 mm

Wheelhead X axis min. setting unit

0.0001 mm

Table Z axis auto. rapid advance

6 m/min

Table Z axis max. stroke

1400 mm

Table Z axis min. input increment

0.0001 mm

Table swivel angle

-2deg-9deg

Work spindle swivel angle

0deg (Fixed Type)

Work spindle center taper

M.T. No. 4

Work spindle speed (variable)

0-300 r.p.m.

Sarcină maximă (Max. load of spindle)

500 kgs

Tailstock center taper

M.T. No. 4

Tailstock stroke

60 mm

Tailstock fine adjustment range

+/-0.03

Wheel spindle motor

7.5 kW (10HP x 4P)

Workhead spindle motor (AC Servo)

1.5 kW (2HP x 4P)

Wheelhead feed motor (AC Servo)

1.8 kW (β12-3000is)

Table feed motor (AC Servo)

1.8 kW (β12-3000is)

Hydro-static hydraulic pump

0.37 kW (1/2HP x 2P)

Wheel spindle lubrication pump

0.18 kW (1/2HP x 2P)

Coolant pump

0.75 kW (1/2HP x 2P)

Wheel spindle lubrication tank

31 L

Lubrication tank

31 L

Hydraulic oil tank (opt. accessory)

31 L

Capacitate rezervor lichid de răcire

60 L

Greutate utilaj

4500 kgs
