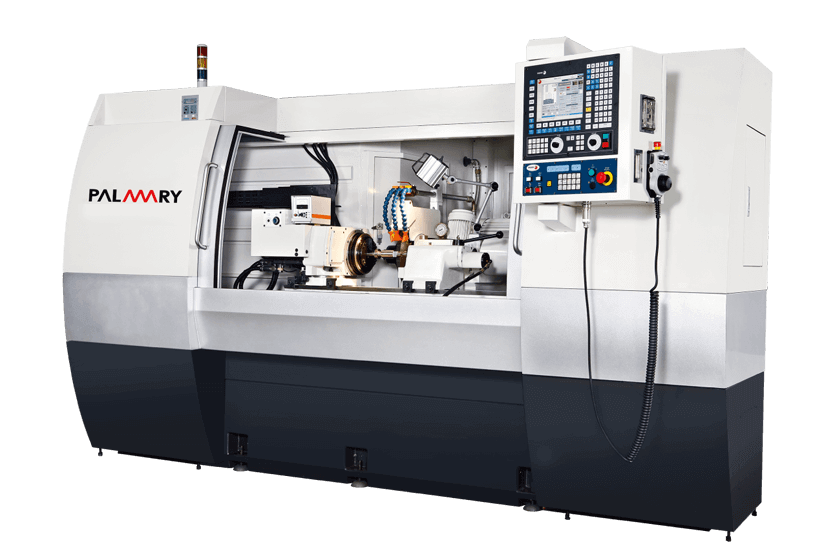

OCD-4260CAM

Specificații tehnice

Swivel over table

420 mm

Distance between centers

600 mm

Max. external grinding diameter

400 mm

Sarcină maximă

150 kgs

Disc abraziv

355 x 50 x 127 mm

Linear velocity

33 M/s

Wheelhead auto. rapid advance

4 m/min

Wheelhead max. stroke

257 mm

Wheelhead min. setting unit

0.001 (0.0001) mm

Table auto. rapid advance

4 m/min

Table max. stroke

826 mm

Table swivel angle

0deg - 10deg

Work spindle head swivel angle

-30deg - +90deg

Center taper

M.T. No. 4

Turație arbore

10-500 r.p.m.

Sarcină maximă (Max. load of spindle)

35 kgs (max. length: 150 mm)

Tailstock stroke

25 mm

Tailstock fine adjustment range

+/-0.03 mm

Wheel spindle motor

3.7 kW (4P)

Workhead spindle motor

5.2 kW (AC Servo Motor)

Wheelhead feed motor

3.6 kW (AC Servo Motor)

Table feed motor

3.6 kW (AC Servo Motor)

Hydro-static hydraulic pump

0.75 kW (6P)

Wheel spindle lubricant pump

0.18 kW (2P)

Coolant pump

0.18 kW (4P)

Wheel spindle lubrication tank

12 L

Lubrication tank

60 L

Ballscrew lubrication tank

0.7 L

Capacitate rezervor lichid de răcire

100 L

Greutate utilaj

5300 kgs
