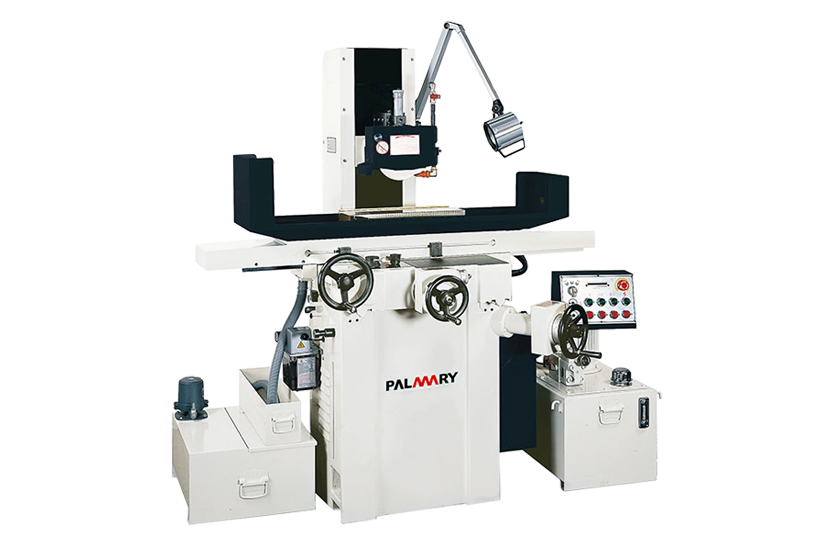

PSG-2045AH

Specificații tehnice

Working surface of table

200 x 450 mm (8" x 18")

Max. surface ground

200 x 450 mm (8" x 18")

Max. distance center of spindle to table

450 mm (18")

Table speed

5-25 m/min

Table guideway

V & flat way

Auto. cross feed increment

0.1 x 12 mm

Rapid power cross feed

1100 mm/min (60Hz) / 900 mm/min (50Hz)

Cross feed on hand wheel (1 rev)

5 mm (0.2")

Cross feed on hand wheel (1 gra)

0.02 mm (0.001")

Rapid power head elevation (opt.)

550 mm/min (60 Hz); 450 mm/min (50 Hz)

Vertical feed on hand wheel (1 rev)

2 mm (0.05")

Vertical feed on hand wheel (1 gra)

0.01 mm std. / 0.005 mm with AD5 opt.

Auto. down feed (opt.)

0.001-0.999 mm/time

Disc abraziv

3500 r.p.m. (60 Hz) / 2900 r.p.m. (50 Hz)

Disc abraziv (Wheel dimension)

180 x 13 x 31.75 mm (max. 200 x 20 x 31.75 mm)

Putere motor arbore

2 HP

Hydraulic pump motor

1 HP

Auto. cross feed motor

25 W

Coolant pump

1/8 HP (opt.)

Machine net weight

950 kgs (1980 Lbs)

Machine floor space

2080 x 1200 mm
