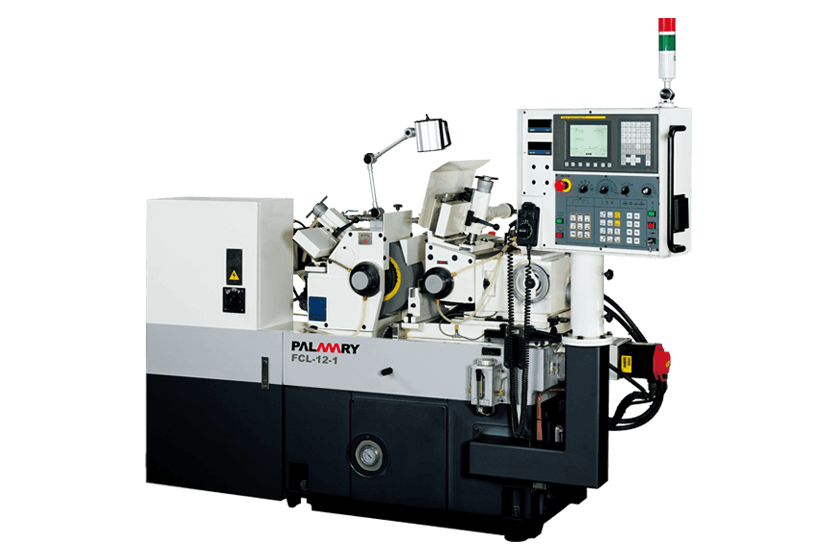

Palmary · Mașini de rectificat fără centre
FCL-12
Engineered to offer the operational performance you've come to expect.
Specificații tehnice
- Comandă numerică
- FANUC
- Standard grinding range (dia.)
- 1-40 mm
- Capacity (special arrangement)
- 30-60 mm
- Disc abraziv
- 305 x 150 x 120 mm
- Linear velocity
- 33 M/s
- Disc abraziv (Grinding wheel motor)
- 7.5HP x 4P (5kW)
- Regulating wheel size (O.D. x width x I.D.)
- 205 x 150 x 90 mm
- Regulating wheel speed range
- 10-300 r.p.m. (variable)
- Regulating wheel motor
- 1.5 kW servo motor
- Regulating wheel tilt angle
- +5deg to -3deg
- Regulating wheel swivel angle
- +/-5deg
- Hydraulic pump motor
- 1HP x 4P
- Coolant motor
- 1/8HP x 2P
- Lubrication
- Automatic electric lubricator
- Capacitate rezervor lichid de răcire
- 100 L
- Hydraulic tank
- 53 L
- Lubrication tank
- 4 L
- Greutate utilaj
- 1700 kgs
