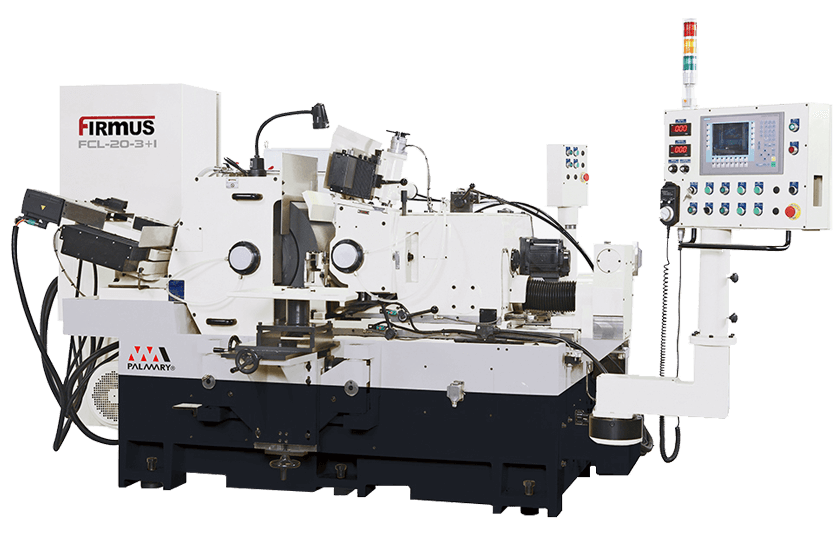

FCL-20

Specificații tehnice

Comandă numerică

FANUC

Standard grinding range (dia.)

1-60 mm

Capacity increases with special arrangement

40-150 mm

Disc abraziv

510 x 205 x 304.8 mm

Linear velocity

33 M/s

Disc abraziv (Grinding wheel motor)

20HP x 4P (15 kW)

Regulating wheel size (O.D. x width x I.D.)

305 x 205 x 127 mm

Regulating wheel speed

10-300 r.p.m. (variable speed)

Regulating wheel motor

5 kW servo motor

Regulating wheel tilt angle

+5deg - -3deg

Regulating wheel swivel angle

+/-5deg

Hydraulic pump motor

1HP x 4P

Coolant motor

1/4HP x 2P

Lubrication

Auto. electric lubricator

Capacitate rezervor lichid de răcire

170 L

Hydraulic tank

88 L

Lubrication tank

4 L

Greutate utilaj

3700 kgs
