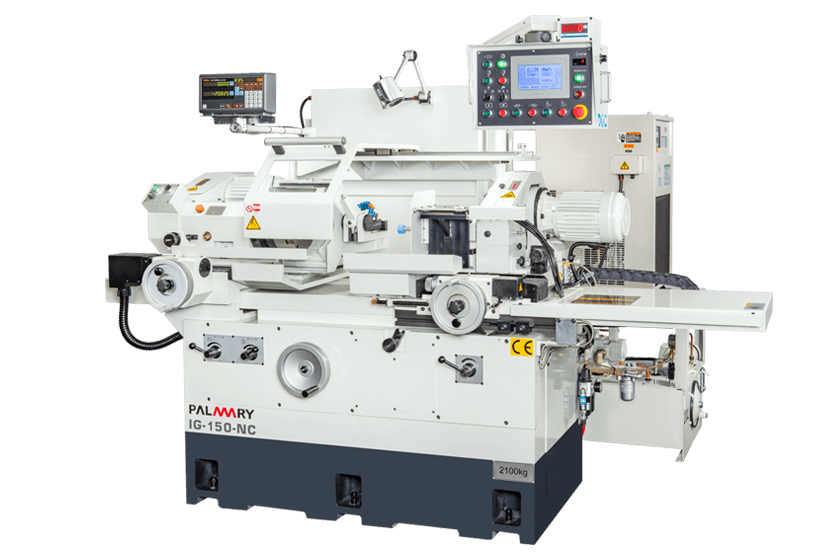

IG-150-2NC

Specificații tehnice

Workhead cover swivelling dia.

280 mm

Internal grinding range

150 mm

Max. workpiece length

200 mm

Wheel spindle outer diameter

90 mm

Wheel spindle linear velocity

30 M/s

Wheel spindle speed

10000-50000 r.p.m.

Table X axis rapid feedrate

0.05 M/min

Table X axis max. traverse

60 mm

Table R axis rapid feedrate

300 M/min

Table R axis max. traverse

70 mm

Z axis rapid feedrate

40 M/min

Z axis max. traverse

400 mm

Workhead swivel

+7deg--8deg

Center taper

MT 6

Work spindle speed

0-800 r.p.m.

Sarcină maximă

50 kgs

Wheel spindle motor

1.5 kW

Work spindle motor

0.75 kW

X axis infeed table motor

0.4 kW

Z axis infeed table motor

0.4 kW

Y axis infeed table motor

2 kW

Hydraulic pump motor

0.75 kW

Coolant pump motor

0.09 kW

Hydraulic tank

42 L

Capacitate rezervor lichid de răcire

70 L

Greutate utilaj

2250 kgs
