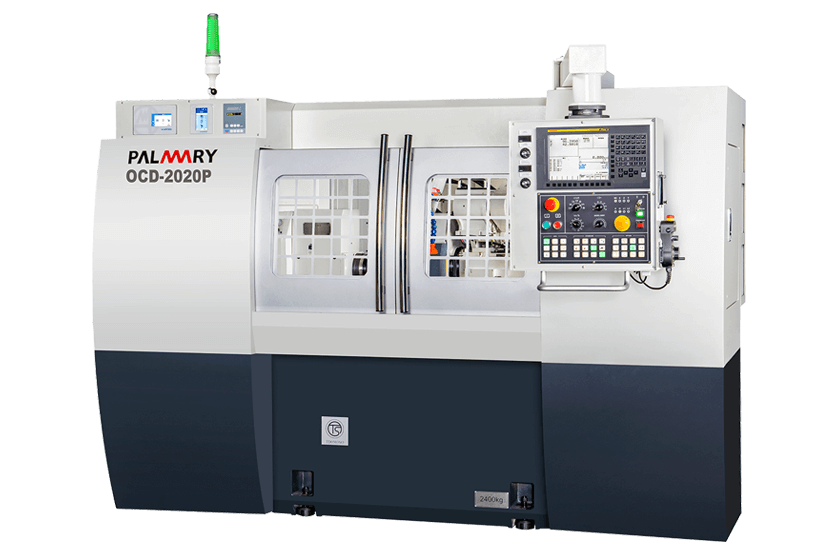

OCD-2020P

Specificații tehnice

Swivel over table

210 mm

Distance between centers

200 mm

Max. external grinding diameter

200 mm

Sarcină maximă

60 kgs

Disc abraziv

355-510 x 50-80 x 127 mm

Linear velocity

33 M/s

Wheel X axis auto. rapid advance

10 m/min

Wheel X axis max. stroke

150 mm

Wheel X axis min. setting unit

0.001 (0.0001) mm

Table Z axis auto. rapid advance

10 m/min

Table Z axis max. stroke

520 mm

Table swivel angle

-3deg - 10deg

Work spindle head swivel angle

-30deg - +90deg

Center taper

M.T. No. 3

Turație arbore

10-300 r.p.m.

Sarcină maximă (Max. load of spindle)

35 kgs (max. length: 100 mm)

Tailstock center taper

M.T. No. 3

Tailstock stroke

20 mm

Tailstock fine adjustment range

+/-0.03 mm

Wheel spindle motor

3.7 kW (6P)

Workhead spindle motor (AC Servo)

0.37 kW (4P)

Wheelhead feed motor (AC Servo)

0.75 kW

Table feed motor (AC Servo)

1.2 kW

Hydro-static hydraulic pump

0.37 kW (4P)

Wheel spindle lubrication pump

0.18 kW (4P)

Coolant pump

0.18 kW (2P)

Internal grinding spindle (opt.)

0.75 kW (2P)

Total voltage

15 KVA

Wheel spindle lubrication tank

31 L

Lubrication tank

31 L

Hydraulic tank

31 L

Ballscrew lubrication tank

0.7 L

Capacitate rezervor lichid de răcire

120 L

Greutate utilaj

2250 kgs
