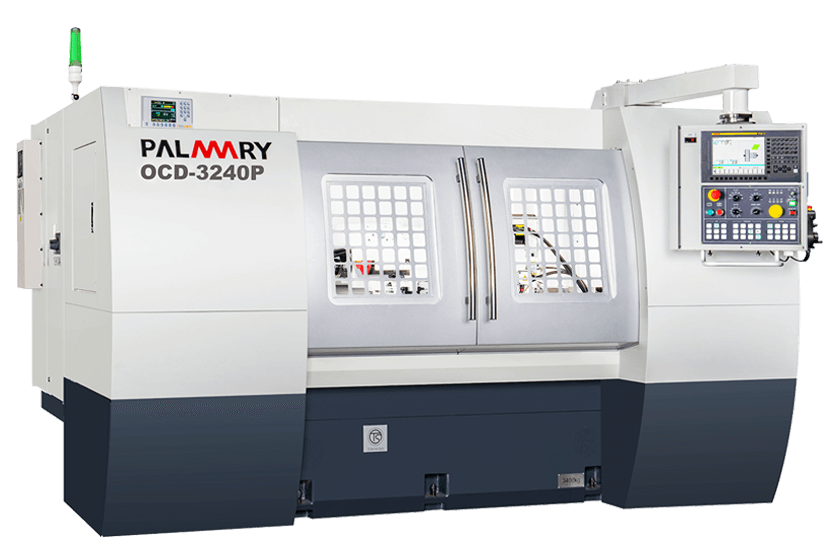

OCD-3240P

Specificații tehnice

Swivel over table

320 mm

Distance between centers

400 mm

Max. external grinding diameter

300 mm

Sarcină maximă

150 kgs

Disc abraziv

455-510 x 50-80 x 127 mm

Linear velocity

33 M/s

Wheel X axis max. stroke

260 mm

Table Z axis max. stroke

818 mm

Table swivel angle

0deg - 10deg

Center taper

M.T. No. 4

Turație arbore

10-300 r.p.m.

Sarcină maximă (Max. load of spindle)

35 kgs (max. length: 150 mm)

Wheel spindle motor

5.5 kW (6P)

Workhead spindle motor (AC Servo)

1.0 kW (4P)

Table feed motor (AC Servo)

1.8 kW

Total voltage

18 KVA

Capacitate rezervor lichid de răcire

120 L

Greutate utilaj

4250 kgs
