Palmary · Mașini de rectificat cilindric

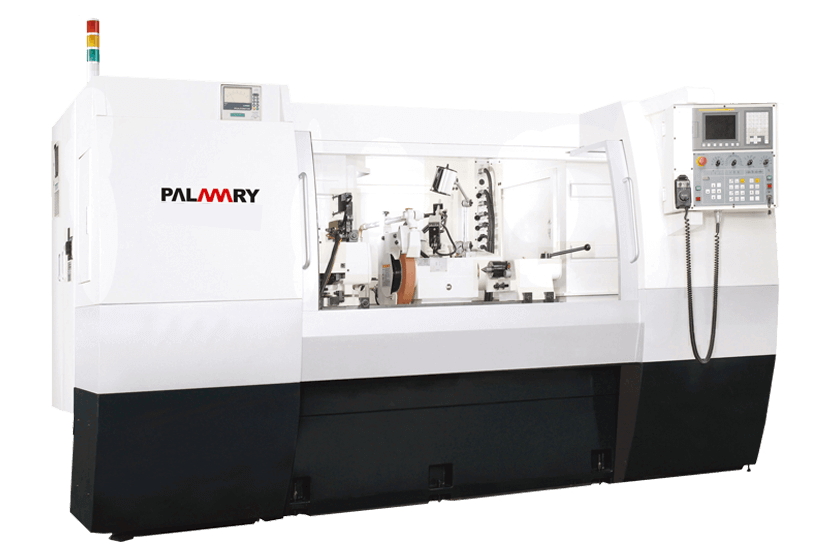

OCD-42100
CNC cylindrical grinder designed with high efficiency, high accuracy and maximum operational convenience in mind.
Specificații tehnice
- Swivel over table
- 420 mm
- Distance between centers
- 1000 mm
- Max. external grinding diameter
- 400 mm
- Sarcină maximă
- 150 kgs
- Disc abraziv
- 405 x 50-75 x 127 (152.4) mm
- Linear velocity
- 33 M/s
- Wheel X axis max. stroke
- 260 mm
- Table Z axis max. stroke
- 1315 mm
- Table swivel angle
- -3deg, +8deg
- Center taper
- M.T. No. 4
- Turație arbore
- 10-300 r.p.m.
- Sarcină maximă (Max. load of spindle)
- 35 kgs (max. length: 150 mm)
- Wheel spindle motor
- 5.5 kW (6P)
- Workhead spindle motor (AC Servo)
- 1.5 kW
- Table feed motor (AC Servo)
- 1.8 kW
- Total voltage
- 18 KVA
- Capacitate rezervor lichid de răcire
- 120 L
- Greutate utilaj
- 4500 kgs
