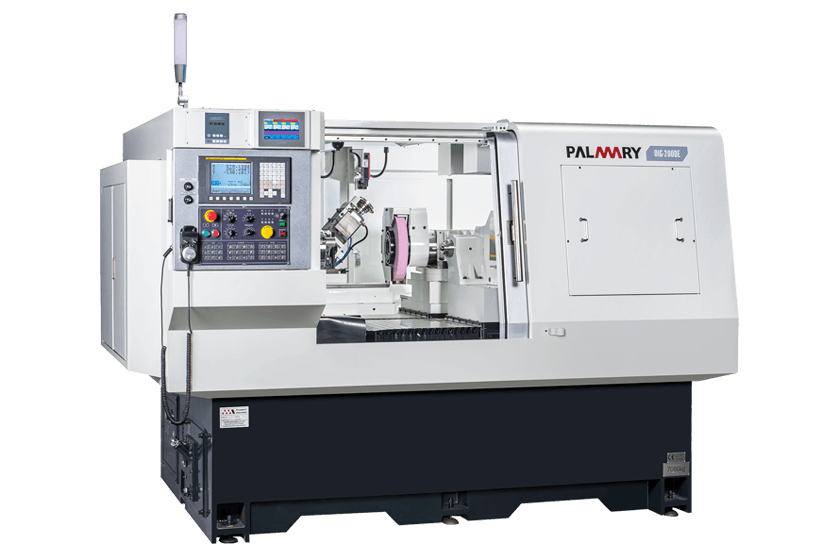

OIG-200DEL35

Specificații tehnice

Comandă numerică

FANUC

Max. chuck outer diameter

200 mm

Max. internal grinding dia.

150 mm

Max. workpiece length

350 mm

Z axis internal wheel spindle outer dia.

90 mm

Z axis internal wheel spindle speed

10000-50000 r.p.m.

Y axis internal wheel spindle O.D.

90 mm

Y axis internal wheel spindle linear velocity

30 M/s

Y axis internal wheel spindle speed

1880 / 2090 r.p.m.

X axis table rapid feedrate

10 M/min

X axis table max. traverse

480 mm

Z axis table rapid feedrate

10 M/min

Z axis table max. traverse

450 mm

Y axis table rapid feedrate

10 M/min

Y axis table max. traverse

310 mm

Workhead swivel

+1deg - -1deg

Center taper

MT 6

Work spindle speed

0-500 / 0-800 r.p.m.

Max. spindle load

50 kgs

Z axis grinding wheel motor

1.5 kW

Y axis grinding wheel motor

4 kW

Workhead motor

2.25 kW

X axis infeed table motor

1.8 kW

Z axis infeed table motor

1.8 kW

Y axis infeed table motor

1.8 kW

Hydraulic pump motor

0.75 kW

Capacitate rezervor lichid de răcire

70 L

Greutate utilaj

6300 kgs
