Palmary · Mașini de rectificat interior

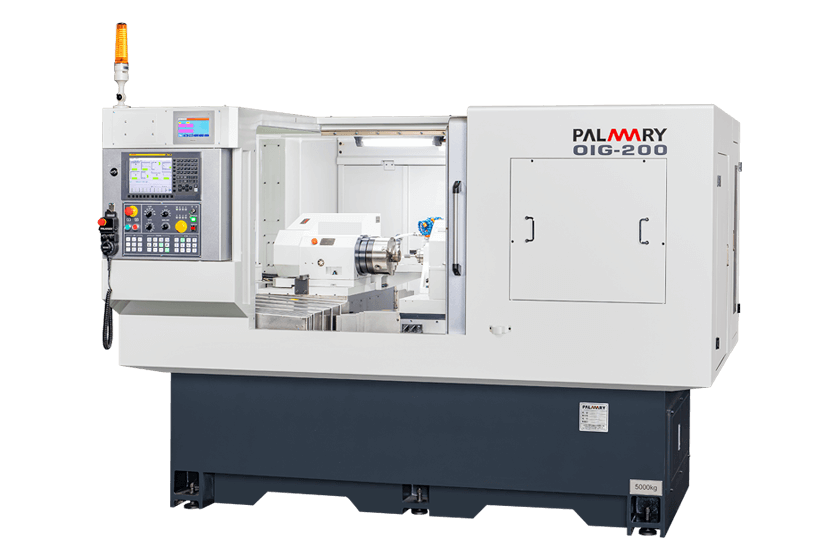

OIG-200L50

The new internal grinding machine from PALMARY features optimal structural design and an elegant appearance combined with advanced CNC control.

Palmary OIG-200L50 — Mașini de rectificat interior

Specificații tehnice

Comandă numerică: FANUC
Max. chuck outer diameter: 200 mm
Max. internal grinding dia.: 150 mm
Max. workpiece length: 500 mm
Spindle outer diameter: 90 mm
Turație arbore: 10000-50000 r.p.m.
X axis rapid feedrate: 10 M/min
Max. table traverse (X/Z): 480 mm
Z axis rapid feedrate: 10 M/min
Z axis max. traverse: 710 mm
Workhead swivel: +1deg - -1deg
Center taper: MT 6
Work spindle speed: 0-500 / 0-800 r.p.m.
Max. spindle load: 50 kgs
Disc abraziv: 1.5 kW / opt. 2.25 kW
Workhead motor: 2.25 kW
X axis motor: 1.8 kW
Z axis motor: 4.4 kW
Hydraulic pump motor: 0.75 kW
Capacitate rezervor lichid de răcire: 70 L
Greutate utilaj: 5700 kgs
