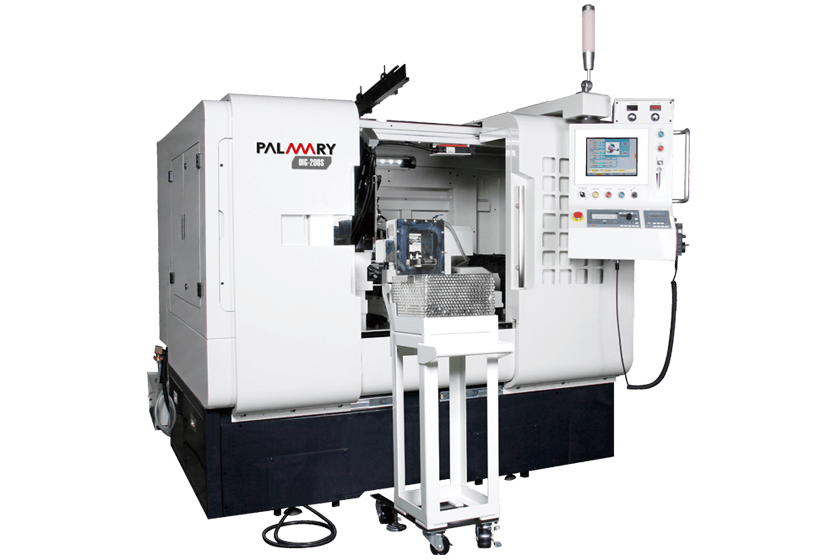

OIG-200S

Specificații tehnice

Comandă numerică

Mitsubishi PLC conversational type controller

Max. workpiece chuck dia.

Max. 80 mm

Grinding capacity

Min. 6 mm - Max. 70 mm

Lungime maximă de rectificat

Max. 50 mm

Built-in G.W. spindle grinding speed

Max. 30000 r.p.m.

Built-in G.W. spindle G.W. dia.

20-45 mm

Built-in G.W. spindle grinding capacity

22-70 mm

Built-in G.W. spindle max. linear velocity

33 M/s

Built-in G.W. spindle diameter

120 mm

Opt. built-in G.W. spindle grinding speed

Max. 80000 r.p.m.

Opt. built-in G.W. spindle grinding G.W. dia.

5-15 mm

Opt. built-in G.W. spindle grinding capacity

6-22 mm

Opt. built-in G.W. spindle linear velocity

33 M/s

Opt. built-in G.W. spindle diameter

100 mm

X axis for G.W. max. table traverse

130 mm

X axis for G.W. max. table feed speed

12 M/min

X axis for G.W. min. setting unit

0.001 mm (opt. 0.0001)

Z axis for G.W. max. table traverse

270 mm

Z axis for G.W. max. table feed speed

12 M/min

Z axis for G.W. min. setting unit

0.001 mm (opt. 0.0001)

Magnetic workhead speed

100-1000 r.p.m. (Max. 1500)

Magnetic workhead swivel

+1deg - -15deg

30,000 built-in G.W. spindle motor

3.0 kW

80,000 built-in G.W. spindle motor (opt.)

2.67 kW

X axis for G.W. servo motor

0.75 kW (1.0 hp) Tc: 2.4 Nm

Z axis for G.W. servo motor

1.5 kW (2.0 hp) Tc: 7.2 Nm

Workhead servo motor

1.5 kW (2.0 hp) Tc: 7.2 Nm

Hydraulic pump

1.5 kW 4P (2.0 hp) (flow 30 L/min)

Lubrication system

0.024 kW

Capacitate rezervor lichid de răcire

120 L

Hydraulic tank

60 L

Lubrication tank

0.7 L

Built-in spindle cooling tank

15 L

Greutate utilaj

4500 kgs
