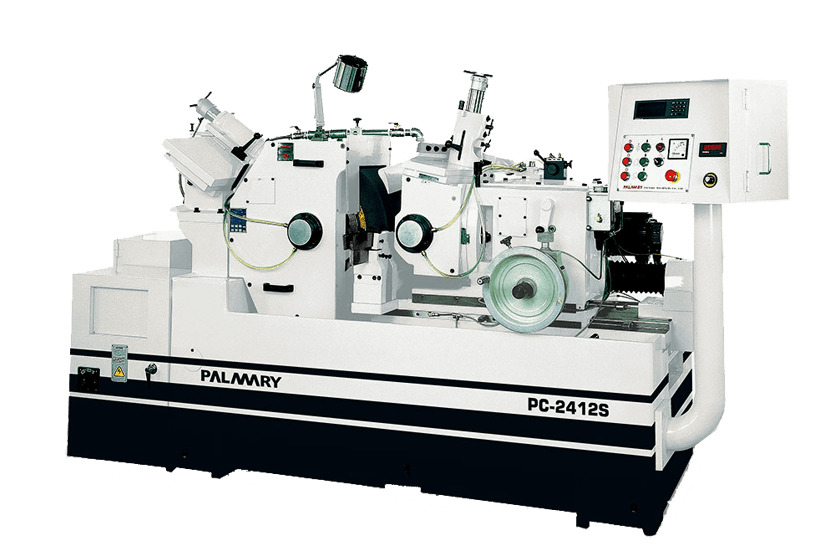

PC-24S

Specificații tehnice

Standard grinding range (dia.)

1-100 mm

Disc abraziv

610 x 205 x 304.8 mm

Linear velocity

40 M/s

Disc abraziv (Grinding wheel motor)

30HP x 4P (22 kW)

Regulating wheel size (O.D. x width x I.D.)

305 x 205 x 127 mm

Regulating wheel speed

10-300 r.p.m. (variable speed)

Regulating wheel motor

5 kW servo motor

Regulating wheel tilt angle

+5deg--3deg

Regulating wheel swivel angle

+/-3deg

Slide micro-feed graduation

2.5 mm/rev/0.01 mm/graduation

Trimming device graduation

2 mm/rev / 0.01 mm/graduation

Hydraulic pump motor

1HP x 4P

Coolant motor

1/2HP x 2P

Lubrication

Manual Lubricator

Capacitate rezervor lichid de răcire

170 L

Hydraulic tank

88 L

Lubrication tank

0.6 L

Greutate utilaj

6000 kgs
