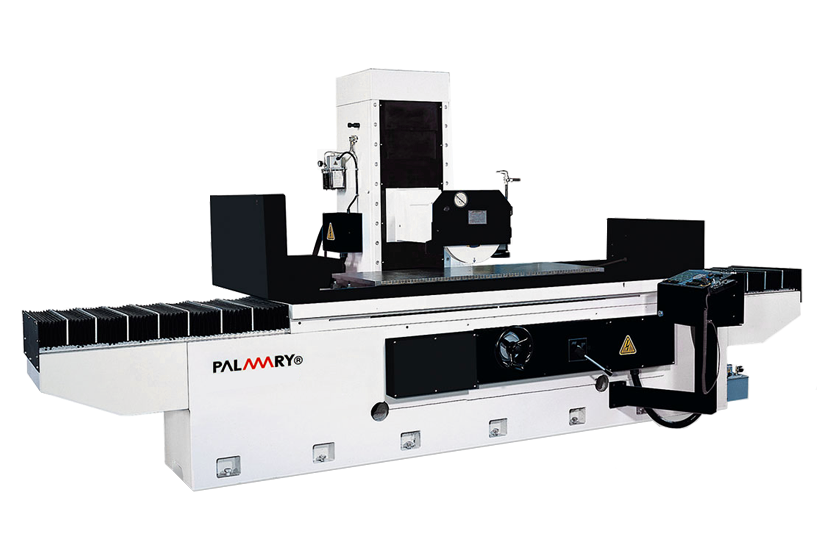

PSG-50200AHR

Specificații tehnice

Working surface of table

500 x 2000 mm (20" x 79")

Max. surface ground

500 x 2000 mm (20" x 79")

Max. distance center of spindle to table

600 mm (24")

Table speed

5-25 m/min (200"-1000"/min)

Table guideway

V & flat way

Auto. cross feed increment

0.5-20 mm (0.02"-0.8")

Rapid power cross feed

1100 mm/min (44"/min) 60Hz; 900 mm/min (36"/min) 50Hz

Vertical feed with M.P.G. (1 rev)

(x10) 1 mm (0.1")

Vertical feed with M.P.G. (1 gra)

(x10) 0.01 mm (0.001")

Auto. down feed (opt.)

0.001-0.999 mm/time

Disc abraziv

1750 r.p.m. (60 Hz) / 1450 r.p.m. (50 Hz)

Disc abraziv (Wheel dimension)

405 x 50 x 127 mm (16" x 2" x 5")

Putere motor arbore

10 HP / 15 HP (opt.)

Hydraulic pump motor

5 HP

Auto. cross feed motor

1/5 HP

Rapid head elevation motor

1 kW AC servo motor

Coolant pump

1/4 HP

Machine net weight

8400 kgs (18480 Lbs)

Machine floor space

6000 x 2300 mm
