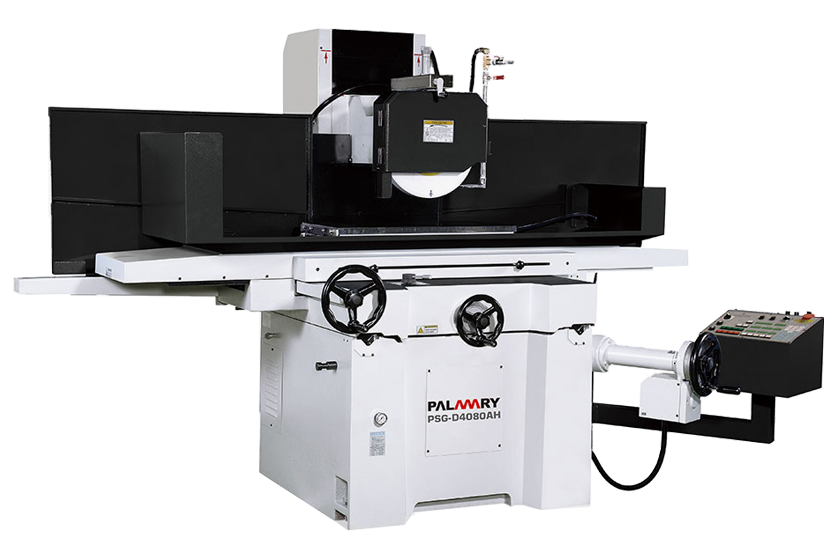

PSG-D4080AH

Specificații tehnice

Working surface of table

400 x 800 mm (16" x 32")

Max. surface ground

400 x 800 mm (16" x 32")

Max. distance center of spindle to table

550 mm (22")

Table speed

5-25 m/min (200"-1000"/min)

Table guideway

V & flat way

Auto. cross feed increment

0.5-20 mm (0.02"-0.8")

Rapid power cross feed (60 Hz)

1100 mm/min (44"/min)

Rapid power cross feed (50 Hz)

900 mm/min (36"/min)

Cross feed hand wheel (1 rev)

5 mm (0.2")

Cross feed hand wheel (1 gra)

0.02 mm (0.001")

Rapid power head elevation (60 Hz)

550 mm/min (13"/min)

Rapid power head elevation (50 Hz)

450 mm/min (11"/min)

Vertical feed hand wheel (1 rev)

2 mm (0.05")

Vertical feed hand wheel (1 gra)

0.01 mm (0.0002")

Auto. down feed

0.001-0.999 mm/time (optional)

Disc abraziv

1750 rpm (60 Hz) / 1450 rpm (50 Hz)

Disc abraziv (Wheel dimension)

405 x 50 x 127 mm (16" x 2" x 5")

Putere motor arbore

5 HP

Hydraulic pump motor

2 HP

Auto. cross feed motor

1/5 HP

Rapid head elevation motor

1/5 HP (optional)

Coolant pump

1/8 HP (optional)

Machine net weight

3250 kgs (7150 lbs)

Machine floor space

3450 x 2050 mm (118" x 79")
