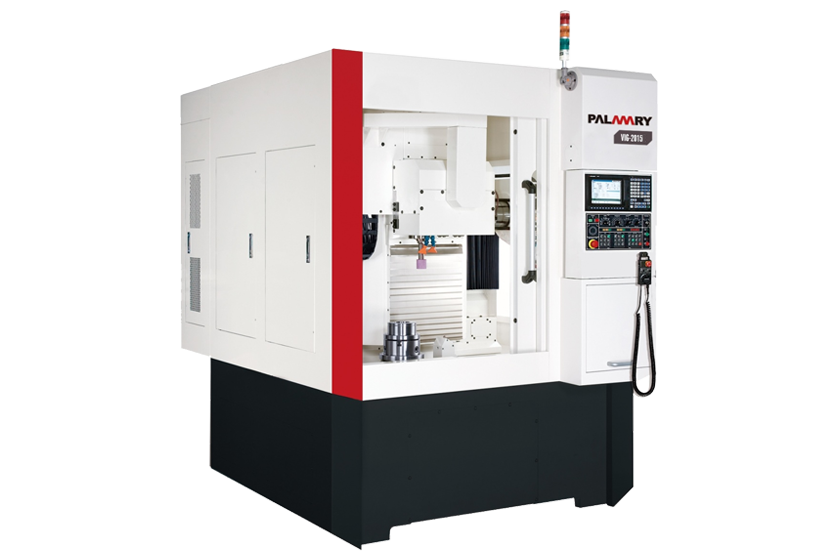

VIG-2015

Specificații tehnice

Comandă numerică

FANUC

Internal grinding range (I.D.:length=1:3)

14-200 mm

Max. external grinding dia.

200 mm

Lungime maximă de rectificat

150 mm

Max. workpiece swing

300 mm

Max. workpiece length

150 mm

Max. workpiece loading

100 kgs

Internal grinding wheel (Z axis) spindle speed

10000-45000 r.p.m.

Internal grinding wheel diameter

10-65 mm

Internal grinding wheel linear velocity

45 M/s

Work spindle speed

40-800 r.p.m.

Dimensiune universal

200 mm

X axis traverse

500 mm

X axis speed

0-6 M/min

X axis min. setting unit

0.001 mm

Z axis traverse

400 mm

Z axis speed

0-6 M/min

Z axis min. setting unit

0.001 mm

X, Z axis slide ways

Linear guideway

Work spindle motor

3.5 kW

Internal grinding wheel motor

3.0 kW; Torque: S1=1.1 Nm, S6=1.5 Nm

X axis motor

1.6 kW

Z axis motor

1.6 kW

Curse axe rotative

2.0 kW

Coolant pump motor

0.75 kW

Lubrication system motor

20 kW

Electricity

32 KVA

Air (work pressure & discharge)

0.7 Mpa & 1800 NL/min

Capacitate rezervor lichid de răcire

140 L

Spindle oil coolant tank

15 L

Greutate utilaj

5500 kgs
